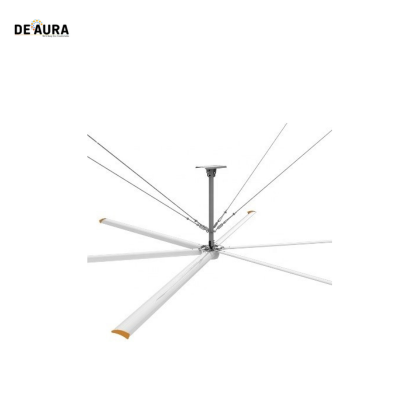

The De’Aura HVLS (High Volume Low Speed) ceiling fan is engineered for large industrial and commercial spaces requiring powerful, energy-efficient air movement. Using a PMSM motor and wide-blade aerodynamic design, it moves up to 780,000 m³/h of air while consuming as little as 1.1 kW — covering areas of up to 1,500 m² with a single fan, at whisper-quiet 40 dB operation.
❖ Key Features
- PMSM permanent magnet synchronous motor — 70% more airflow vs conventional fans
- Available in 7 sizes: 3m to 7.3m (10ft to 24ft) diameter
- Ultra-low noise operation — only 40 dB
- 220–380V / 50–60Hz universal voltage compatibility
- High-strength steel ropes & bolts for maximum structural safety
- Static paint coating over cathodic protection — corrosion resistant
- Smiling-face connection bracket for sloped ceiling installations
- Speed controller compatible (variable speed)
- 5 or 6 aerodynamic aluminium blades depending on model
- Covers up to 1,500 m² effective coverage area per fan
❖ Ideal Applications
Warehouses & Factories | Airports & Aircraft Hangars | Gyms & Sports Halls | Agricultural Farms | Shopping Centres | Workshops & Garages | Construction Sites | Exhibition & Event Halls
❖ Accessories
- Different length down rod
- Speed controller
- I-Beam fixing kit
- Glulam fixing kit
❖ Technical Specifications
| Model | BS-HVLS-3.0-CN | BS-HVLS-3.7-CN | BS-HVLS-4.3-CN | BS-HVLS-5.0-CN | BS-HVLS-6.1-CN | BS-HVLS-6.7-CN | BS-HVLS-7.3-CN |
|---|---|---|---|---|---|---|---|
| Size | 3m (10ft) | 3.7m (12ft) | 4.3m (14ft) | 5m (16ft) | 6.1m (20ft) | 6.7m (22ft) | 7.3m (24ft) |
| Power | 0.37 kW | 0.37 kW | 0.75 kW | 0.75 kW | 1.1 kW | 1.1 kW | 1.1 kW |
| Voltage | 220–380V / 50–60Hz | ||||||
| Airflow | 240,000 m³/h | 300,000 m³/h | 420,000 m³/h | 600,000 m³/h | 690,000 m³/h | 720,000 m³/h | 780,000 m³/h |
| Speed | 120 RPM | 100 RPM | 90 RPM | 80 RPM | 65 RPM | 60 RPM | 55 RPM |
| Effective Area | 150 m² | 230 m² | 256 m² | 300 m² | 600 m² | 650 m² | 700 m² |
| Coverage Area | 250 m² | 380 m² | 450 m² | 500 m² | 1,000 m² | 1,300 m² | 1,500 m² |
| Noise Level | 40 dB | 40 dB | 40 dB | 40 dB | 40 dB | 40 dB | 40 dB |
| Blades | 5 blades | 5 blades | 5 blades | 5 blades | 6 blades | 6 blades | 6 blades |
| Fan Weight | 53 kg | 57 kg | 67 kg | 71 kg | 122 kg | 125 kg | 129 kg |
Product Catalogues
Model Features:
| Fan Diameter | Number of Wings | Supply Voltage | Power (Kw) | RPM | Flow (m³/h) | Noise (db) | Weight (kg) | Range (m²) | |
|---|---|---|---|---|---|---|---|---|---|
| P8 | 2450 | 6 | 220-230 | 0,37 | 100 | 46200 | <55 | 88 | 280 |
| P10 | 3050 | 6 | 220-230 | 0,37 | 100 | 89000 | <55 | 102 | 375 |
| P12 | 3660 | 6 | 220-230 | 0,37 | 90 | 110000 | <55 | 109 | 430 |
| P14 | 4270 | 6 | 220-230 | 0,63 | 100 | 245000 | <55 | 116 | 680 |
| P16 | 4880 | 6 | 220-230 | 0,75 | 60 | 273000 | <55 | 136 | 650 |
| P18 | 5500 | 6 | 220-230 | 1,04 | 70 | 335000 | <55 | 157 | 735 |
| P20 | 6100 | 6 | 220-230 | 1,09 | 60 | 392000 | <55 | 145 | 805 |
| P22 | 6700 | 6 | 220-230 | 1,09 | 55 | 476000 | <55 | 169 | 1018 |
| P24 | 7300 | 6 | 220-230 | 1,09 | 55 | 616000 | <55 | 176 | 1256 |
